Creating the CodePipeline

This lab walks through integrating AWS CloudFormation Guard into an AWS CodePipeline to automate and simplify pre-deployment compliance checks of your AWS CloudFormation templates.

This lab has been created based around the blog: Integrating AWS CloudFormation Guard into CI/CD pipelines.

Create the IAM Resources

The CI/CD pipeline needs two AWS Identity and Access Management (IAM) roles to run properly: one role for CodePipeline to work with other resources and services, and one role for AWS CloudFormation to run the deployments that passed the validation check in the CodeBuild phase.

For this section you will create a CloudFormation stack to build your IAM resources. See IAM Documentation for more information on IAM.

  1. In your AWS Cloud9/VSCode Server environment, runn the following commands in the terminal to pull down the CloudFormation YAML file into a newly created directory:

    cd ~/environment
mkdir iamcfn
cd iamcfn
curl 'https://static.us-east-1.prod.workshops.aws/public/bc005028-76d7-42ac-9cb2-fed686ce81e0/static/templates/pipeline_iam.yaml' --output pipeline_iam.yaml

  2. Create the CloudFormation stack to create your IAM roles required by running the following commands in the terminal:

    aws cloudformation create-stack --stack-name guard-demo-iam-stack --template-body file://pipeline_iam.yaml --capabilities CAPABILITY_NAMED_IAM

You can view the created stack in the CloudFormation console.

Creating a pipeline

You can now create your pipeline to assemble all the components into one managed, continuous mechanism.

  1. From the AWS Developer Tools console, use the navigation pane to choose Pipeline then choose Pipelines.

  2. Choose Create pipeline.

  3. For Pipeline name, enter **cloudformationguarddemo**.

  4. Leave the remaining defaults up until Service role.

  5. For Service role, select Existing service role and select **codepipeline-cfnguard-demo-role**.

  6. Leave the remaining defaults and choose Next.

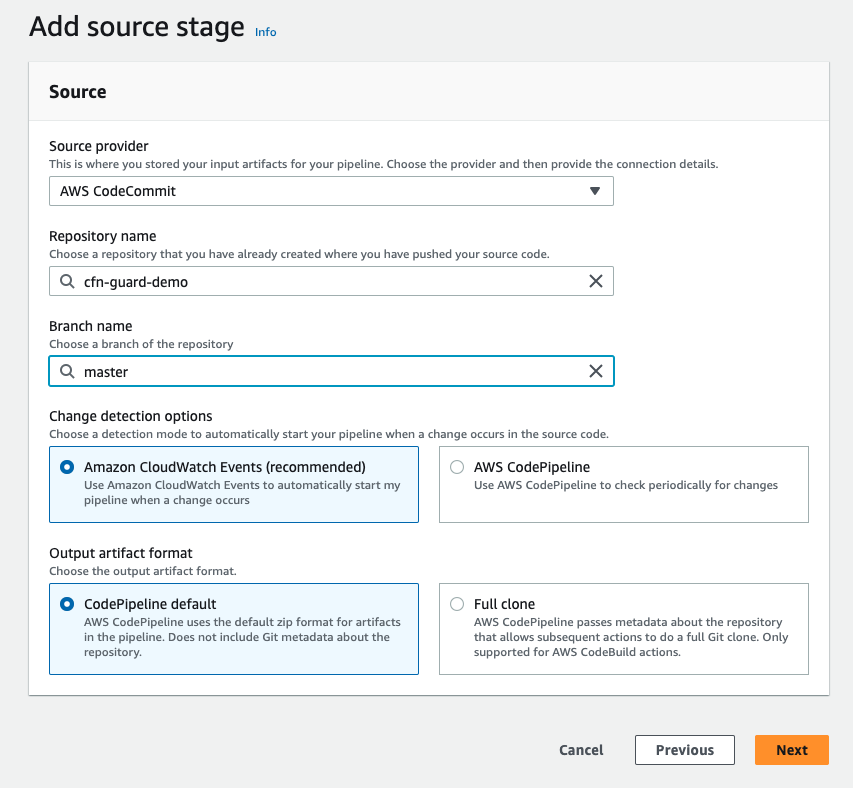

  7. In the Source section, for Source provider, choose AWS CodeCommit.

  8. For Repository name, choose your repository name. In this case, choose **cfn-guard-demo**.

  9. For Branch name, choose master.

  10. For Change detection options, select Amazon CloudWatch Events.

  11. For Output artifact format, keep the default. In this case, CodePipeline default.

  12. Choose Next.

  13. In the Build section, for Build provider, choose AWS CodeBuild.

  14. For Project name, choose the CodeBuild project you created. In this case, choose **cfn-guard-demo**.

  15. For Build type, select Single build.

  16. Choose Next.

    Now you will create a deploy stage in your CodePipeline to deploy CloudFormation templates that passed the CloudFormation Guard inspection in the CI stage.

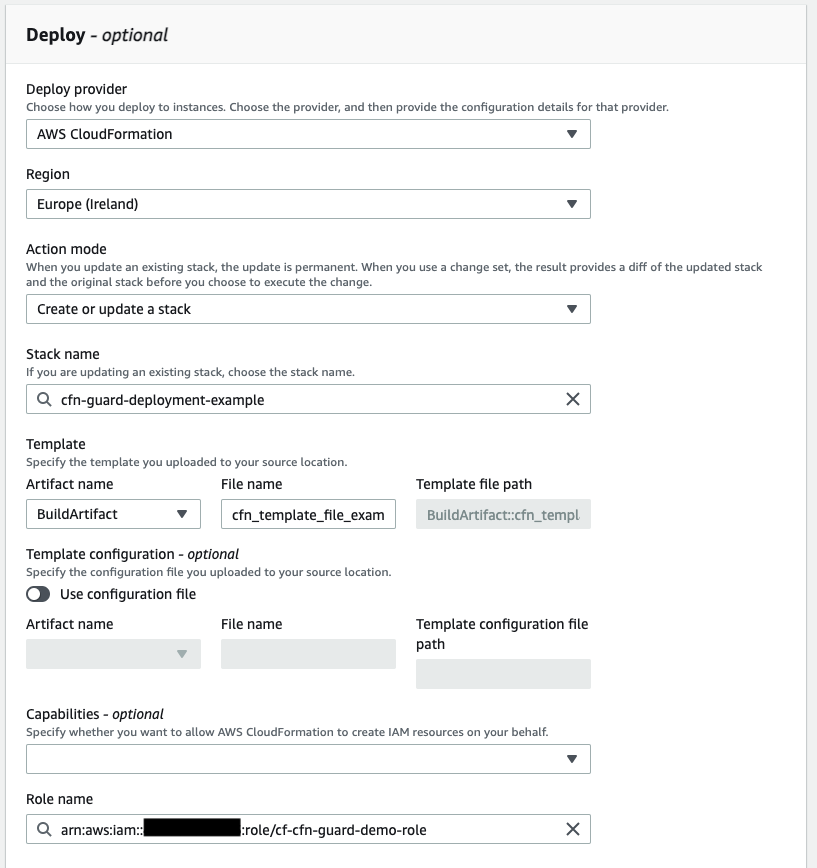

  17. In the Deploy section, for Deploy provider, choose AWS CloudFormation.

  18. For Action mode, choose Create or update stack.

  19. For Stack name, enter **cfn-guard-deployment-example**.

  20. For Artifact name, choose **BuildArtifact**.

  21. For File name, enter the CloudFormation template name in your CodeCommit repository. In this case it is **cfn_template_file_example.yaml**.

  22. For Role name, choose the role you created earlier for CloudFormation cf-cfn-guard-demo-role.

  23. Leave the remaining defaults and choose Next.

  24. In the next step review your selections for the pipeline to be created. The stages and action providers in each stage are shown in the order that they will be created. After you have reviewed your selections, choose Create pipeline.

    cfn_template_file_example.yaml Status = FAIL
FAILED rules
cfn_guard_ruleset_example.guard/validate_env_tag        FAIL
---

Evaluating data cfn_template_file_example.yaml against rules cfn_guard_ruleset_example.guard
Number of non-compliant resources 1
Resource = S3Bucket {
Type      = AWS::S3::Bucket
Rule = validate_env_tag {
    ALL {
    Check =  Tags[*].Value IN  ["dev","test","prod"] {
        ComparisonError {
        Message          = Tag key 'environment' not set correctly. Check both the Key & Value
        Error            = Check was not compliant as property [/Resources/S3Bucket/Properties/Tags/0/Value[L:15,C:16]] was not present in [(resolved, Path=[L:0,C:0] Value=["dev","test","prod"])]
        }
        PropertyPath    = /Resources/S3Bucket/Properties/Tags/0/Value[L:15,C:16]
        Operator        = IN
        Value           = "deeev"
        ComparedWith    = [["dev","test","prod"]]
        Code:
            13.            SSEAlgorithm: AES256
            14.     Tags:
            15.       - Key: "environment"
            16.         Value: "deeev"
            17.       - Key: "service"
            18.         Value: "myservice"

    }
    Check =  Tags[*].Value IN  ["dev","test","prod"] {
            ComparisonError {
            Message          = Tag key 'environment' not set correctly. Check both the Key & Value
            Error            = Check was not compliant as property [/Resources/S3Bucket/Properties/Tags/1/Value[L:17,C:16]] was not present in [(resolved, Path=[L:0,C:0] Value=["dev","test","prod"])]
            }
            PropertyPath    = /Resources/S3Bucket/Properties/Tags/1/Value[L:17,C:16]
            Operator        = IN
            Value           = "myservice"
            ComparedWith    = [["dev","test","prod"]]
            Code:
                15.       - Key: "environment"
                16.         Value: "deeev"
                17.       - Key: "service"
                18.         Value: "myservice"

            }
        }
    }
}

Cleaning up this section

To avoid incurring future charges, delete the resources that you have created during the walkthrough:

  • CloudFormation stack resources that were deployed by the CodePipeline

  • CodePipeline that you have created

  • CodeBuild project

  • CodeCommit repository
